Cement Machinery

Your Professional Cement Machinery Supplier!

Chengdu GUTE Machinery was established in 1994. During the past 30 years, we are always focusing on R&D, manufacturing and marketing services of light construction machinery. As a Enterprise Technology center in Chengdu City, GUTE machinery has became the leading brand of light construction machinery in china, as well as the only customized solution service provider for light construction machinery in China. Our products include Steel Bar Processing Machinery, Steel Bar Bender, Road Machinery, Cement Machinery, etc.

Our Best-Selling Cement Machinery Types

Shotcrete Machines

Shotcrete machine is a special equipment for spraying concrete, which is often used in large-scale construction such as tunnels and water conservancy projects. It has the advantages of fast spraying speed, high construction speed and good construction quality.

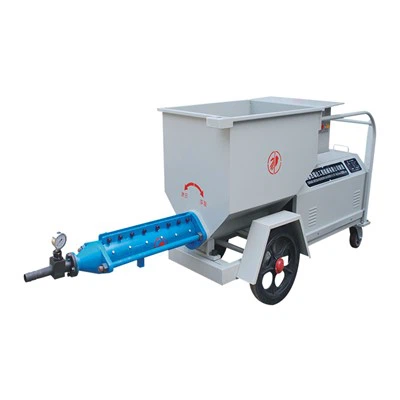

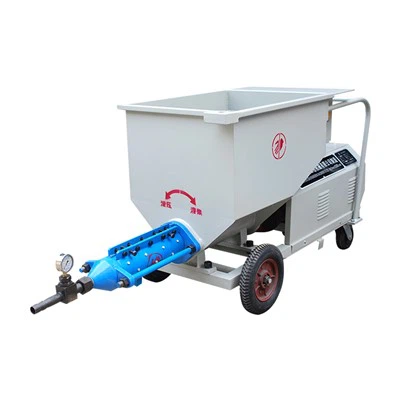

Grout Pump

A grout pump is a machine that fills a void with pumpable material to improve strength, durability or waterproofing qualities. They come in a whole range of sizes and machine specifications so it is important to be clear on what you require from your grout pump and the type of job you are carrying out.

Mixing Machine

Mixing machine is a machine used in construction to mix cement, water, and other materials, such as sand, gravel, and sometimes additives, to make concrete. Mixing machines can be either stationary or portable and are available in various sizes, from small portable mixers that can be transported by hand to large industrial-sized mixers used on construction sites.

Shotcrete Machines Specification

Parameters		Unit	Data
Productivity		m³/h	6
Maximum aggregate size		mm	≤15
Concrete slump		cm	16-20
Pipe inner diameter		mm	57
Compressed air	Wind consumption	m³/min	≥10
	Working wind pressure	Mpa	0.4-0.7
Maximum spraying distance		m	50
Motor power		kw	15
Liquid accelerator		L/h	0-280(adjustable)
Feeding height		mm	1100
Hopper volume		L	160
Total weight		kg	600
Size(L×W×H)		mm	3000(2175)×890×1300

Advantages of Shotcrete Machines

01/

Efficiency and Cost-Effectiveness

By reducing transport and labor costs, shotcrete machines can lead to significant savings. The speedy application process minimizes construction timelines, which translates into reduced project budgets.

02/

Flexibility in Applications

Shotcrete is used across various projects, from tunnels and retaining walls to swimming pools and complex architectural shapes. The ability to form complex forms without the need for elaborate formwork makes it superior for intricate projects.

03/

Enhanced Structural Integrity

Shotcrete layers usually exhibit dense, compact, and strong characteristics. The high-velocity application contributes to superior bonding with existing materials, enhancing the structural integrity of the construction.

04/

Reduced Rebound Loss

The precise control in application results in minimal material waste, including reduced rebound rates, where material bounces back from the surface instead of sticking.

Shotcrete Machine Application

Shotcrete machine is a kind of construction equipment, Shotcrete machine has high working efficiency, low rebound, high degree of concrete hydration, and can greatly improve the quality of shotcrete and improve the homogeneity of concrete etc.

Shotcrete machine is widely used in mines, tunnels, rock slopes, building foundation pits, building structure reinforcement and other projects. It is widely used in the lining construction of tunnels, culverts and other projects.

Spray machine can be used to repair aged or damaged building structures. By spraying concrete onto cracks or damaged structures, the shotcrete machine can repair and enhance their bearing capacity.

Wet shotcrete can be sprayed directly onto the rock surface to form a solid tunnel wall, improving the stability and safety of the tunnel.

Shotcrete machines spray concrete into formwork to quickly create building structures of various shapes and sizes.

Mixing Machine For Small And Medium-sized Construction

Safety Considerations When Operating Shotcrete Machine

Mixing Machine With 120 M³/h Production Capacity

1. The shotcrete workers should daily review the job site conditions such as pressured lines, equipment set-up, hazards from debris and the environment. Always check to guarantee the shotcrete machine running safely and low noise.
2. Always wear safety glasses or goggles, use safety shoes or boots and hearing protection.
3. Shotcrete workers should become familiar with all machines and operate them strictly follow the manufacturer's safety precautions.
4. Before working, also need read Material Safety Data Sheets (MSDS) of the material to avoiding possible dangerous.
5. Work site need has well lighting and ventilation to ensure nozzle man could see everything clearly. And need to control dust and overspray.
6. In cold weather and hot weather, in order to protect the Shotcrete area, need consider tenting and heating.
7. When shot concrete, also need pay attention to nozzle, hose to reduce the potential dangerous.

Mixing Machine Specification

Model	JN750AH
Feed capacity(L)	1200
Discharge capacity(L)	750
Theoretical production capacity (m³/h)	35
Mixing motor Power (kw)	30
Maximum particle size of aggregate	60
Stirring motor power	30kW
Winch motor power	7.5kW
Pump motor power	2.2kW
Dimensions (mm)(L × W × H)	3900×2450×2700mm
Discharge height	2.2m ordinary height/high tank car receiving height/custom receiving height

Advantages of Mixing Machine

Enhanced Concrete Quality

Consistently produces high-quality mixes with improved durability and performance.

Operational Efficiency

Combines multiple functions (mixing, transporting) to save time and labor costs.

Cost-Effectiveness

Reduces material loss and project costs through on-demand production.

Versatility

Adaptable to various concrete types and mix designs. Suitable for both small renovations and large-scale projects.

Environmental Benefits

Minimizes waste and fuel consumption, aligning with sustainable practices.

Industry Applications of Mixing Machine

Mixing machines are versatile and find applications across various industries. In the construction sector, they are essential for supplying concrete to numerous projects, ranging from residential and commercial buildings to infrastructure developments such as bridges, roads and dams. The mining industry also relies on mixing machines for the construction of mine shafts, support structures and other facilities.

Mixing machines play a crucial role in the precast concrete industry, providing the necessary materials for manufacturing precast components like beams, columns and panels. Other industries utilizing mixing machines are the energy sector (for building power plants and infrastructure related to renewable energy), and agriculture (for building silos and storage facilities).

After-sales Service

1. One-year full warranty; Core parts (motors, controllers) covered for two years.

2. Installation guide, operating manual, and training video provided.

3. Online remote support within 24 hours; Overseas technical service available upon request.

Shipping & Delivery

1. In-stock models are ready to ship within 7 working days
2. Delivery terms supported: FOB / CIF / CFR
3. Global shipping available to over 70 countries via sea, land, or air freight

Marketing Network


FAQ

Q: How to operate a shotcrete machine?

A: Adjust the lower air pressure (for the Vortex Stream Implement) to approximately 0.05-0.1MPa (relative to the conveying distance). Simultaneously, open the water valve on the Nozzle Assy. to pre-dampen the spraying surface. The operator can then start the machine for shotcreting.

Q: What is a shotcrete machine?

A: Used to apply concrete efficiently and quickly, the Shotcrete machine can allow you to cover large areas with concrete in a short amount of time. Reaching complex or unique areas is a breeze, allowing you to service areas where traditional formwork would be challenging.

Q: What does a shotcrete machine do?

A: Shotcrete machine is a special equipment for spraying concrete, which is often used in large-scale construction such as tunnels and water conservancy projects. It has the advantages of fast spraying speed, high construction speed and good construction quality.

Q: What is a mixing machine?

A: Mixing machine is a machine used in construction to mix cement, water, and other materials, such as sand, gravel, and sometimes additives, to make concrete.

Q: What is mixing machineused for?

A: Mixing machines are versatile and find applications across various industries. In the construction sector, they are essential for supplying concrete to numerous projects, ranging from residential and commercial buildings to infrastructure developments such as bridges, roads and dams. The mining industry also relies on mixing machines for the construction of mine shafts, support structures and other facilities.

As one of the leading cement machinery suppliers in China, we warmly welcome you to wholesale cheap cement machinery in stock here and get free sample from our factory. For customized service, contact us now.
